Refrigerant Dryers

The Fusheng FR Series is a premium quality range of high efficiency refrigerant dryers offering effective moisture removal with maximum reliability. All models feature a stainless steel heat exchanger and auto capacity control system. Performance rated for the Australian climate.

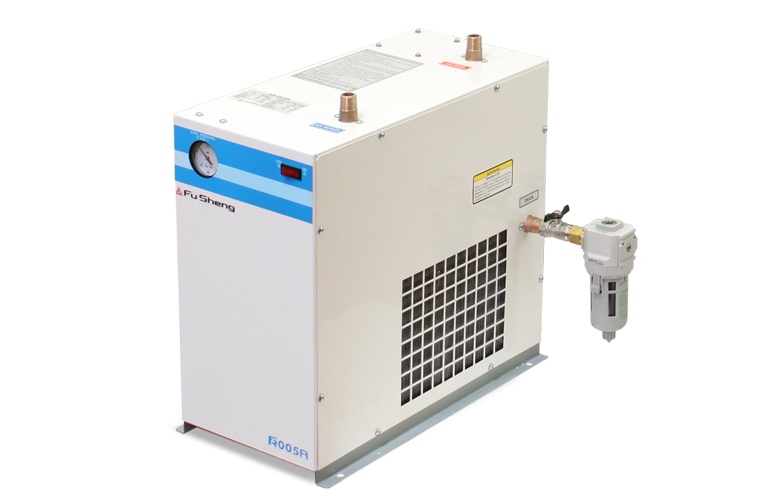

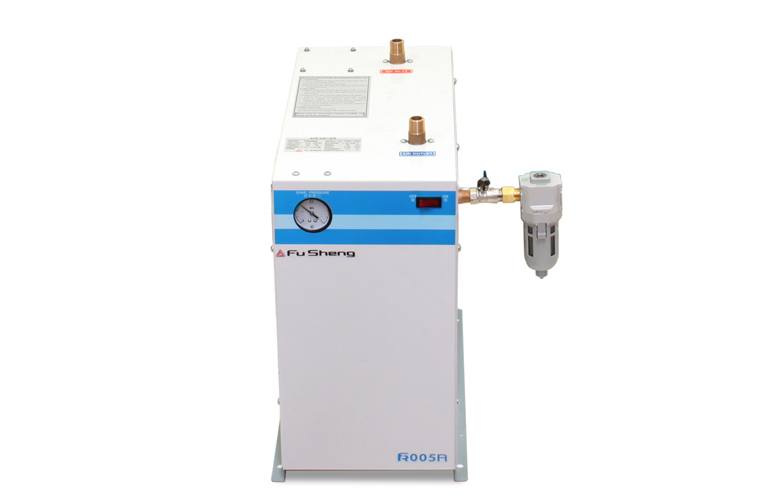

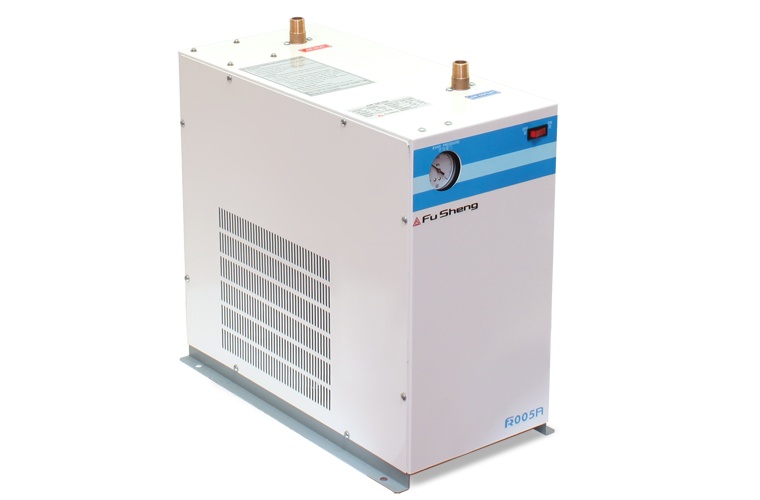

    Fusheng FR005A

    Airflow Capacity 0.6 m³/min (21.2 cfm)
    Rated Air Pressure 700 kPa (102 psi)
    Maximum Pressure 1,000 kPa (145 psi)
    Inlet Air Temp. 35°C Nom. / 50°C Max.
    Ambient Temp. 32°C Nom. / 40°C Max.
    Dew Point 2°C Nom. / 10°C Max.
    Inlet & Outlet Size 1/2 inch BSP
    Electricity Supply 240 Volts, 10 Amps
    RRP (incl. GST): $2,336.00
    Product Code FS FR005A

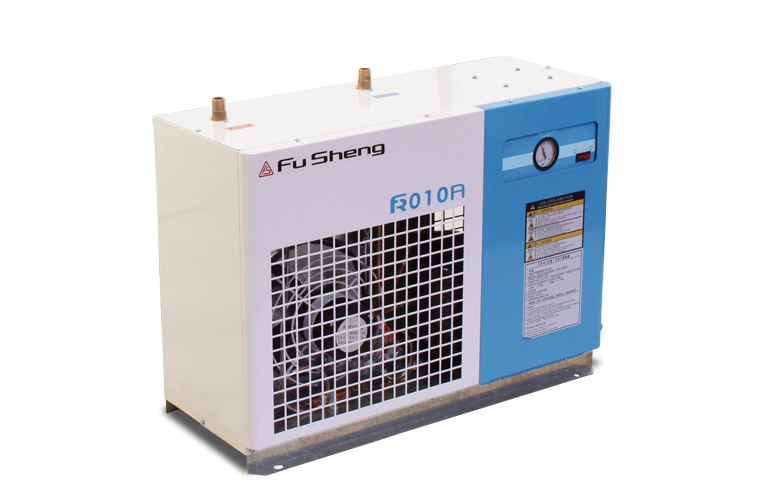

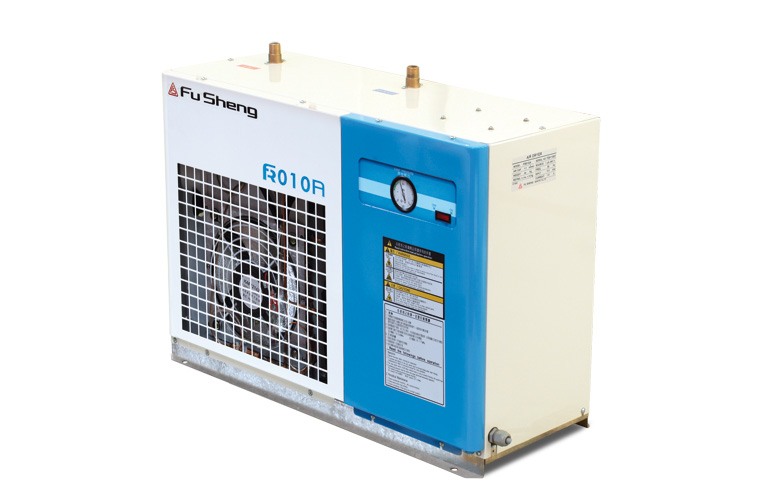

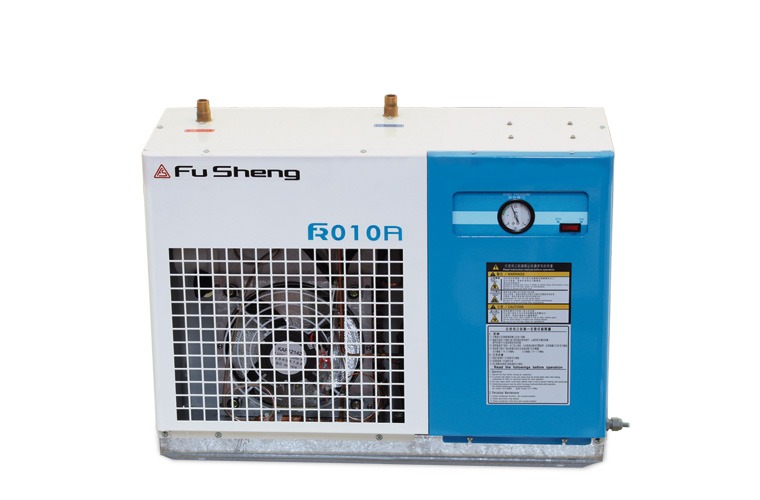

    Fusheng FR010A

    Airflow Capacity 1.2 m³/min (42.4 cfm)
    Rated Air Pressure 700 kPa (102 psi)
    Maximum Pressure 1,000 kPa (145 psi)
    Inlet Air Temp. 35°C Nom. / 50°C Max.
    Ambient Temp. 32°C Nom. / 40°C Max.
    Dew Point 2°C Nom. / 10°C Max.
    Inlet & Outlet Size 3/4 inch BSP
    Electricity Supply 240 Volts, 10 Amps
    RRP (incl. GST): $3,098.00
    Product Code FS FR010A

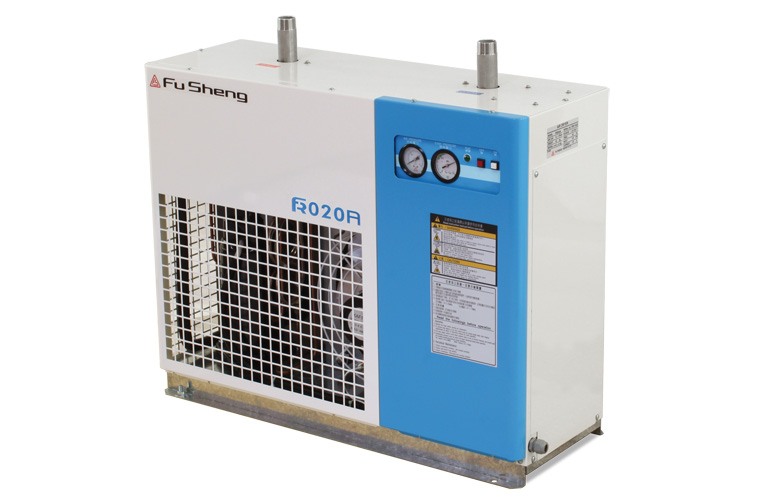

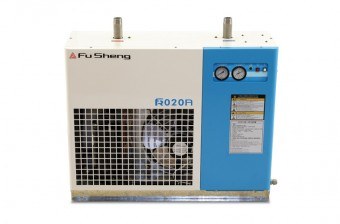

    Fusheng FR020A

    Airflow Capacity 2.4 m³/min (84.8 cfm)
    Rated Air Pressure 700 kPa (102 psi)
    Maximum Pressure 1,000 kPa (145 psi)
    Inlet Air Temp. 35°C Nom. / 50°C Max.
    Ambient Temp. 32°C Nom. / 40°C Max.
    Dew Point 2°C Nom. / 10°C Max.
    Inlet & Outlet Size 1 inch BSP
    Electricity Supply 240 Volts, 10 Amps
    RRP (incl. GST): $4,121.00
    Product Code FS FR020A

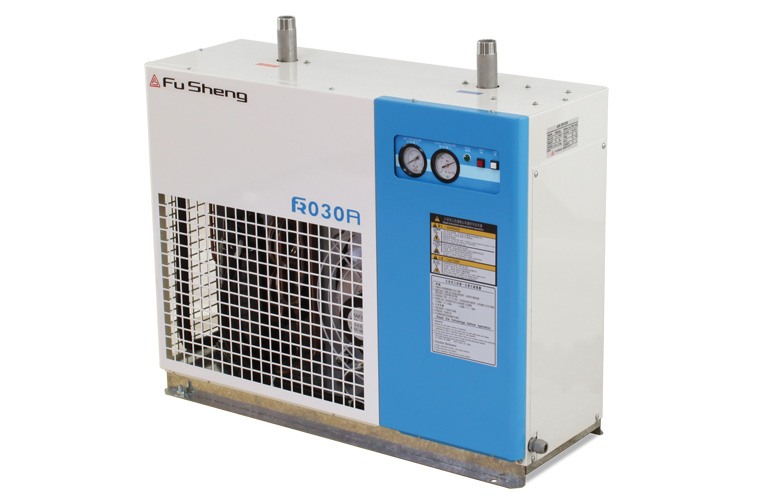

    Fusheng FR030A

    Airflow Capacity 4.4 m³/min (155 cfm)
    Rated Air Pressure 700 kPa (102 psi)
    Maximum Pressure 1,000 kPa (145 psi)
    Inlet Air Temp. 35°C Nom. / 50°C Max.
    Ambient Temp. 32°C Nom. / 40°C Max.
    Dew Point 2°C Nom. / 10°C Max.
    Inlet & Outlet Size 1 inch BSP
    Electricity Supply 240 Volts, 10 Amps
    RRP (incl. GST): $4,943.00
    Product Code FS FR030A

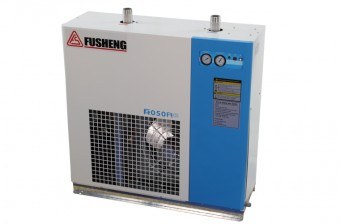

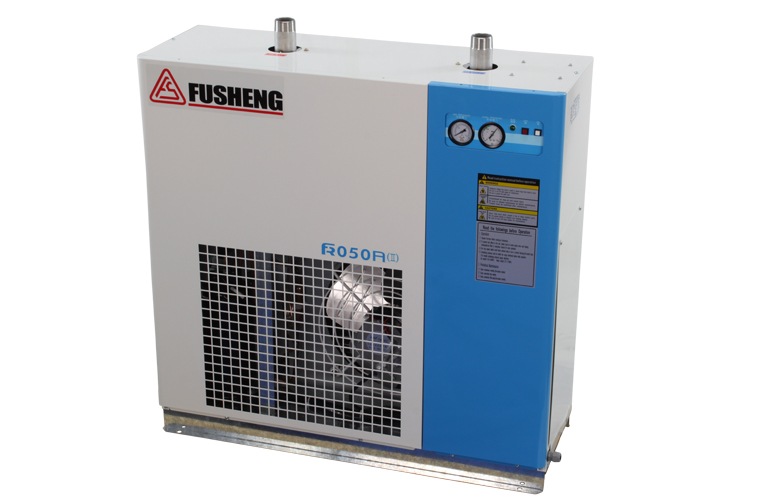

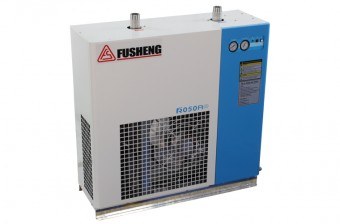

    Fusheng FR050A

    Airflow Capacity 7.0 m³/min (247 cfm)
    Rated Air Pressure 700 kPa (102 psi)
    Maximum Pressure 1,000 kPa (145 psi)
    Inlet Air Temp. 35°C Nom. / 50°C Max.
    Ambient Temp. 32°C Nom. / 40°C Max.
    Dew Point 2°C Nom. / 10°C Max.
    Inlet & Outlet Size 1-1/2 inch BSP
    Electricity Supply 240 Volts, 10 Amps
    RRP (incl. GST): $7,407.00
    Product Code FS FR050A

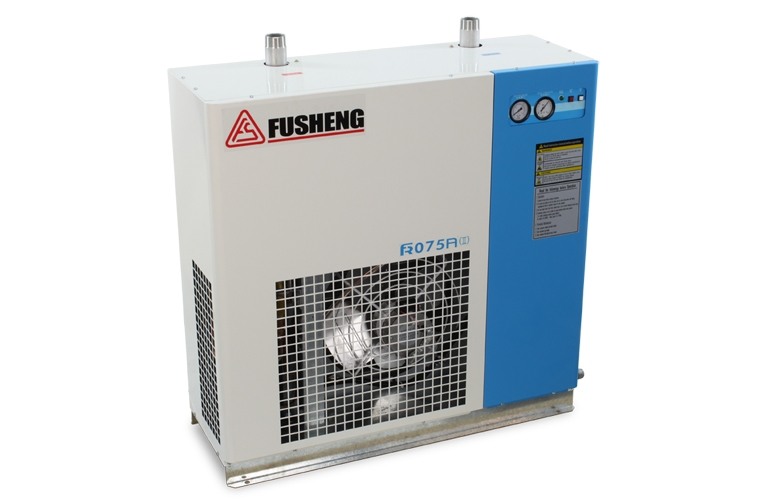

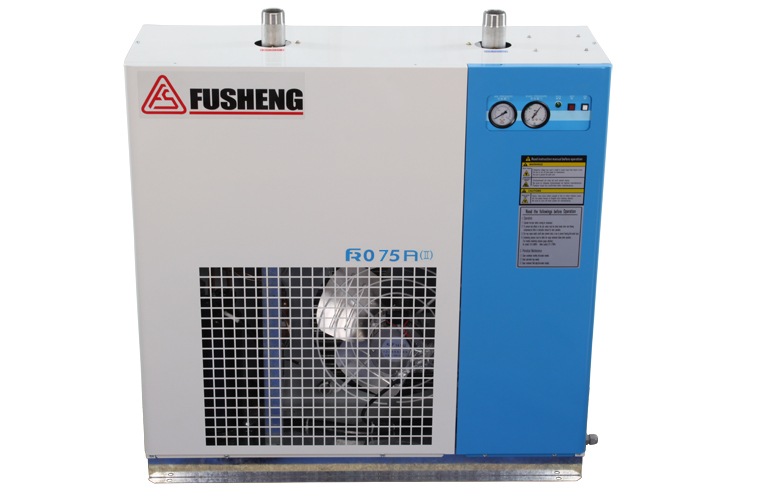

    Fusheng FR075A

    Airflow Capacity 11.0 m³/min (388 cfm)
    Rated Air Pressure 700 kPa (102 psi)
    Maximum Pressure 1,000 kPa (145 psi)
    Inlet Air Temp. 35°C Nom. / 50°C Max.
    Ambient Temp. 32°C Nom. / 40°C Max.
    Dew Point 2°C Nom. / 10°C Max.
    Inlet & Outlet Size 1-1/2 inch BSP
    Electricity Supply 240 Volts, 10 Amps
    RRP (incl. GST): $9,930.00
    Product Code FS FR075A

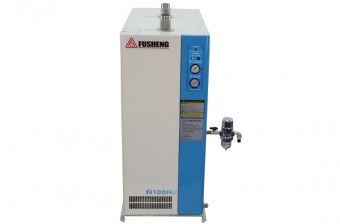

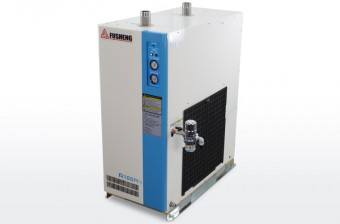

    Fusheng FR100A

    Airflow Capacity 14.0 m³/min (494 cfm)
    Rated Air Pressure 700 kPa (102 psi)
    Maximum Pressure 1,000 kPa (145 psi)
    Inlet Air Temp. 35°C Nom. / 50°C Max.
    Ambient Temp. 32°C Nom. / 40°C Max.
    Dew Point 2°C Nom. / 10°C Max.
    Inlet & Outlet Size 2 inch BSP
    Electricity Supply 415 Volts, 4.7 Amps
    RRP (incl. GST): $13,365.00
    Product Code FS FR100A

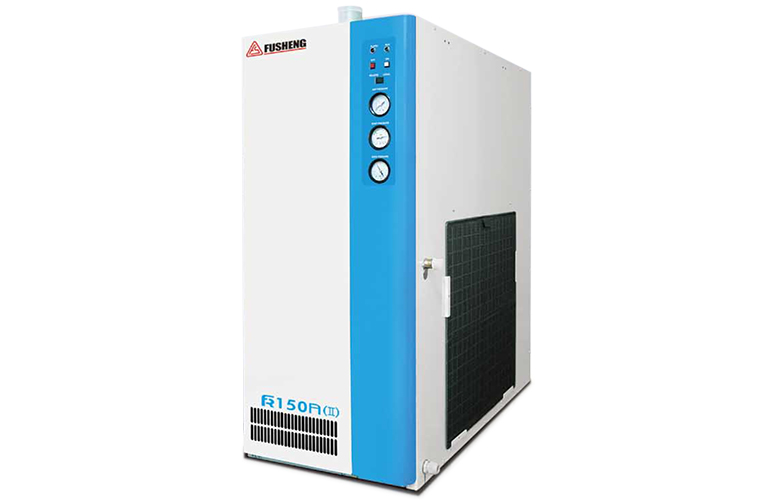

    Fusheng FR150A

    Airflow Capacity 23.5 m³/min (830 cfm)
    Rated Air Pressure 700 kPa (102 psi)
    Maximum Pressure 1,000 kPa (145 psi)
    Inlet Air Temp. 35°C Nom. / 50°C Max.
    Ambient Temp. 32°C Nom. / 40°C Max.
    Dew Point 2°C Nom. / 10°C Max.
    Inlet & Outlet Size 2-1/2 inch BSP
    Electricity Supply 415 Volts, 7.0 Amps
    RRP (incl. GST): $18,447.00
    Product Code FS FR150A

Enquire about this Product
