Eco Scroll Series 4 to 15 kW

The FS-Curtis ECO Scroll Series comprises a range of oil-free air compressor sets offering superior energy efficiency, ease of operation, quietness and compactness in an environmentally responsible manner. They are ideal for applications where the highest standard of compressed air quality is critical.

    FS-Curtis ECO Scroll 04

    Motor Power 3.7 kW (5 hp)
    Module Configuration 1 x 3.7 kW (1 x 5 hp)
    Free Air Delivery 0.43 m³/min (15 cfm)
    Maximum Pressure 800 kPa (116 psi)
    Noise Level 57 dB(A)
    L x W x H Dim's 640 x 604 x 895 mm
    Weight 170 kg
    Air Outlet 1/2 inch BSP
    RRP (incl. GST): $10,259.00
    Product Code FS ES04-8B

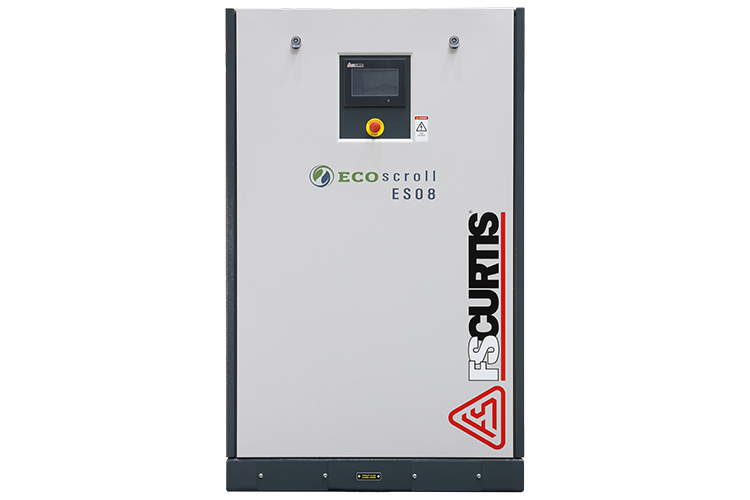

    FS-Curtis ECO Scroll 08

    Motor Power 7.5 kW (10 hp)
    Module Configuration 2 x 3.7 kW (2 x 5 hp)
    Free Air Delivery 0.85 m³/min (30 cfm)
    Maximum Pressure 800 kPa (116 psi)
    Noise Level 59 dB(A)
    L x W x H Dim's 1,020 x 750 x 1,645 mm
    Weight 440 kg
    Air Outlet 3/4 inch BSP
    RRP (incl. GST): $19,419.00
    Product Code FS ES08-8B

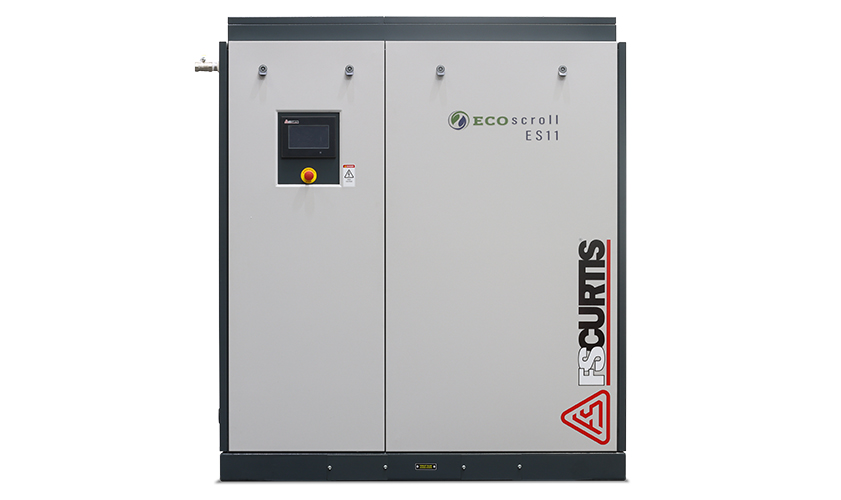

    FS-Curtis ECO Scroll 11

    Motor Power 11 kW (15 hp)
    Module Configuration 3 x 3.7 kW (3 x 5 hp)
    Free Air Delivery 1.28 m³/min (45 cfm)
    Maximum Pressure 800 kPa (116 psi)
    Noise Level 61 dB(A)
    L x W x H Dim's 1,600 x 750 x 1,830 mm
    Weight 685 kg
    Air Outlet 1 inch BSP
    RRP (incl. GST): $28,424.00
    Product Code FS ES11-8B

    FS-Curtis ECO Scroll 15

    Motor Power 15 kW (20 hp)
    Module Configuration 4 x 3.7 kW (4 x 5 hp)
    Free Air Delivery 1.70 m³/min (60 cfm)
    Maximum Pressure 800 kPa (116 psi)
    Noise Level 63 dB(A)
    L x W x H Dim's 1,600 x 750 x 1,830 mm
    Weight 770 kg
    Air Outlet 1 inch BSP
    RRP (incl. GST): $32,963.00
    Product Code FS ES15-8B

Enquire about this Product
